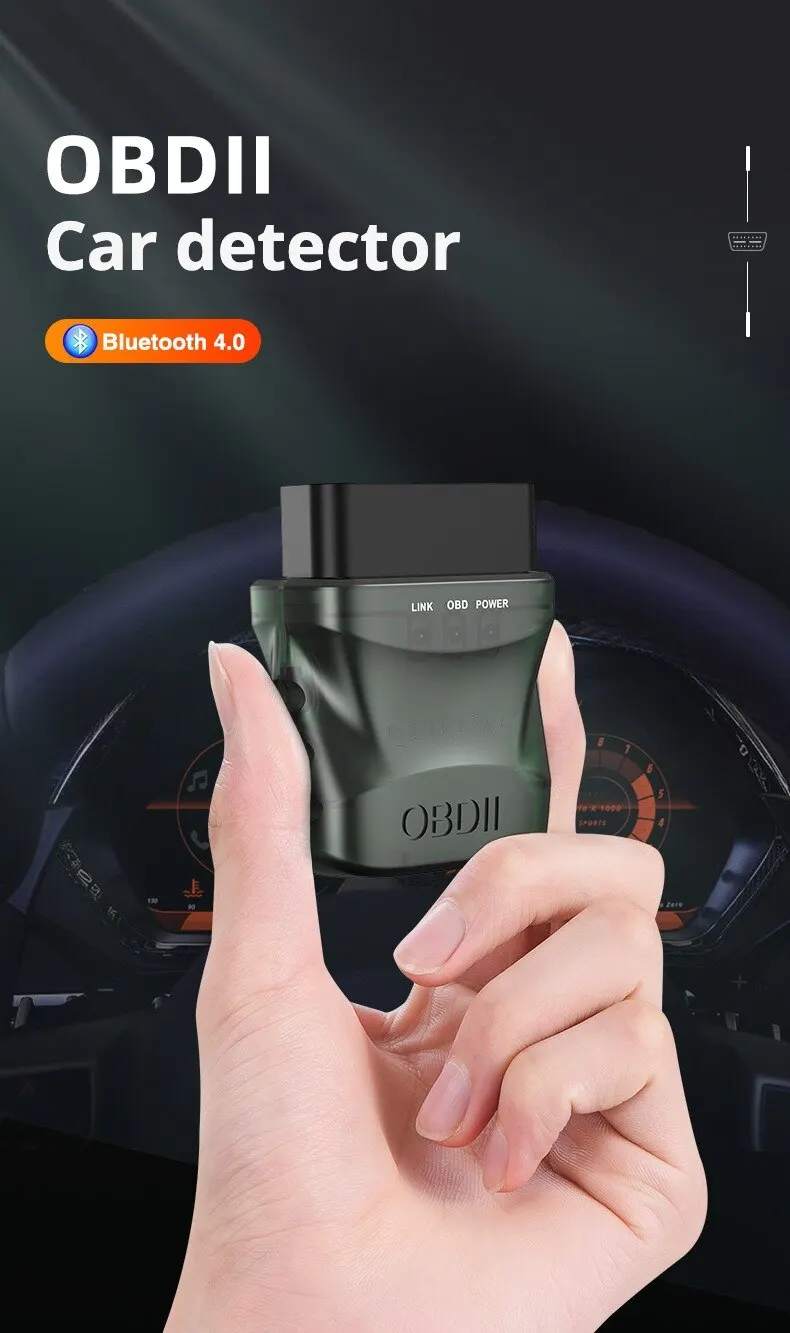

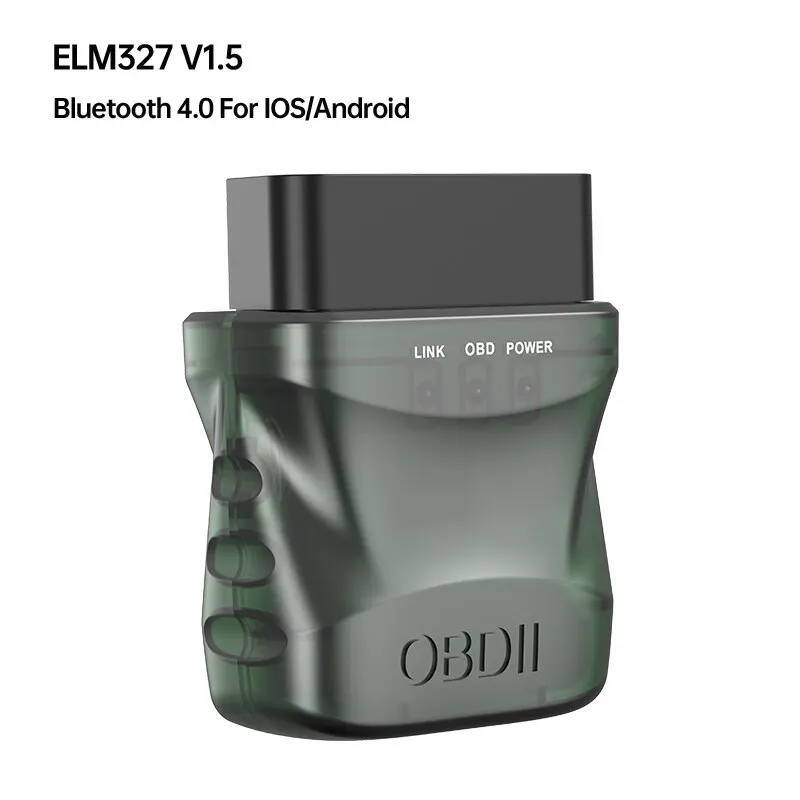

ELM327 Bluetooth OBD2 Scanner

Product description



Features:

– Real-time monitoring of the vehicle and display of diagnostic values for all vehicle indicators. Database with more than 3000 code definitions.

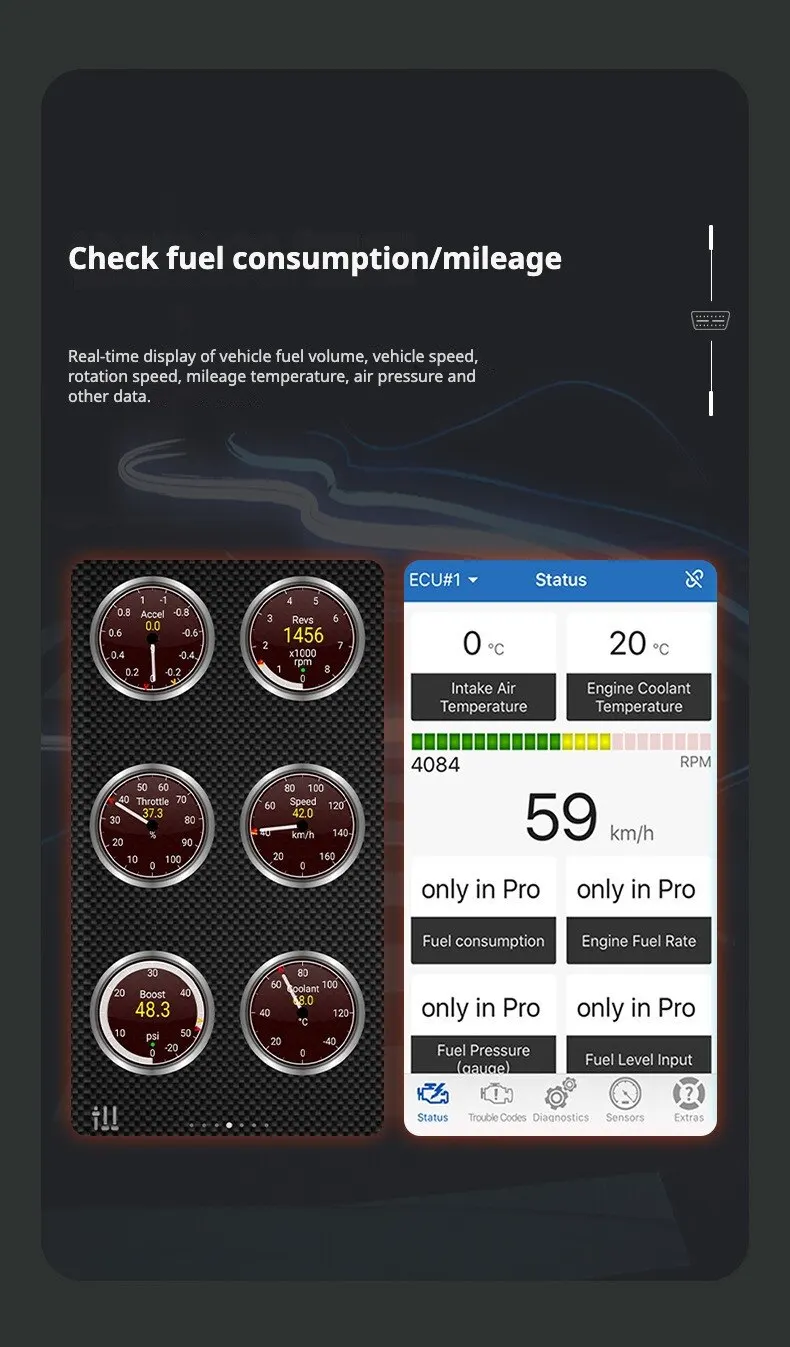

– Real-time display of vehicle fuel level, speed, RPM, mileage, temperature, air pressure and other data.

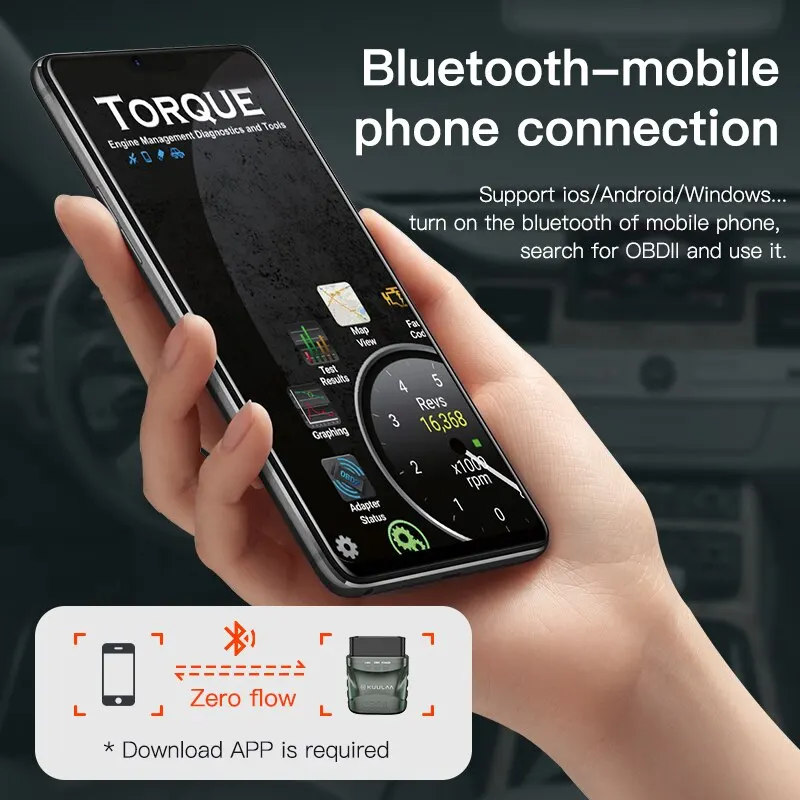

– Support ios/Android /Windows. Turn on your phone Bluetooth, search OBDII and use it.



Specification:

Name: Bluetooth OBDII car detector

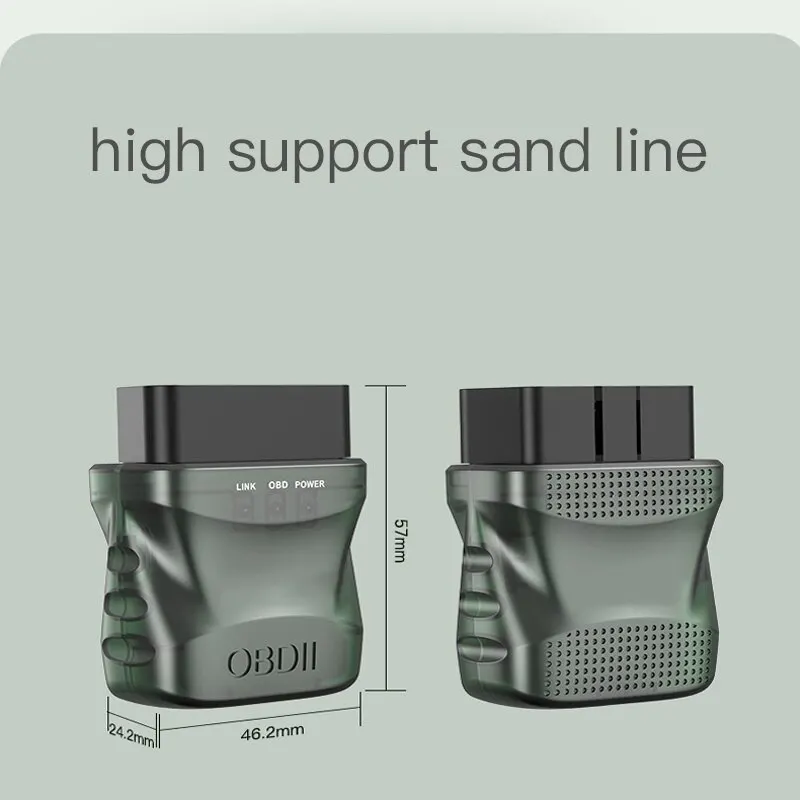

Product size: 57*24.2*46.2mm

Working voltage：12V

Operating temperature: -40~80C

Main control chip: MM32L073

Model: KL-DW006

Bluetooth version: 4.0

Product weight: 24g

Operating current: 32mA

Storage temperature: -30~80C

Software platform: Support Android /Windows/IOS…

Color: dark green

Support Protocol:

SAE J1850 PWM(41.6 Kbaud)

SAE J1850 VPD(10.4 Kbaud)

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO 14230-4 KWP (fast init,10.4 Kbaud)

ISO 15765-4 CAN (11bit ID, 500 Kbaud)

ISO 15765-4 CAN (29bit ID,500 Kbaud)

ISO 15765-4 CAN(11bit ID,250 Kbaud)

ISO 15765-4 CAN (29bit ID,250 Kbaud)



Package included:

OBDII detector *1, User’s manual *1



NOTES: Please read the instructions for the first time use to prevent misuse.



Notice



*The picture is for reference only, the actual design of the product may vary.



*Due to the light and screen setting difference, the item’s color may be slightly different from the pictures.



*Please allow slight dimension difference due to different manual measurement.
